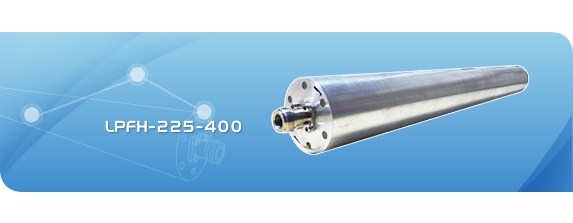

- 225～400 MHz High Power Tubular Lowpass Filter
 |
Measurement Results |

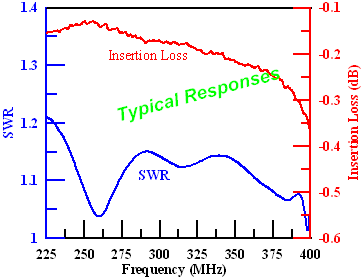

| 1. SWR and Insertion Loss |
| 2. Attenuation |
|
Features |
| Low Cost, Custom Design, Low Loss, High Power |
|
|
Pass Band |
| 225MHz~400MHz | |
|
SWR |
| 1.25:1 Max. | |
|
Insertion Loss |
| 0.4 dB Max | |
|
Attenuation |
| 35 dB Min @ 450 MHz 50 dB Min @ 675~2000 MHz |
|
|
CW Operating Power |
| 2000 W (Typ.) | |
