Channel Rotary Joint

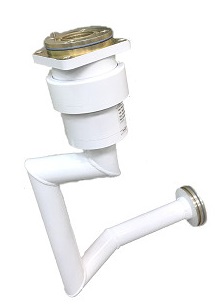

- WR284 Rotary Joint

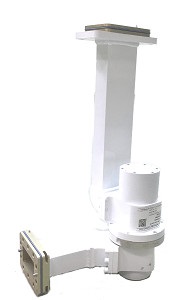

| Part No.# | JSRJI284A | JSRJI284A | JSRJI284B1 |
| Type | I type | L type | I type |
| Frequency Range | 2.7 ~ 3.2GHz | 2.6 ~ 3.0GHz | 2.851 ~ 2.861GHz |
| VSWR | 1.25 max | 1.2 max | 1.10 max |
| VSWR-WOW | 0.05 max | 0.03 max | -- |
| Insertion Loss | 0.2dB max | 0.2dB max | 0.2dB max |
| Insertion Loss-WOW | 0.05dB max | 0.03dB max | -- |
| Peak Power | 700kW min@ 0psi | 850 kW min | 8MW |
| Average Power | 1kW min | 1kW min | 15KW |
| Pressure | 30 Psi min | 10 Psi min | 43.5 Psi min |
| Input | WR284 | WR284 | WR284 |
| Material | Aluminum | Aluminum | Brass |
| Part No.# | JSRJL284B2 | JSRJU284B | JSRJU284A03 | JSRJU284A04 |
| Type | L type | U type | U type | U type |
| Frequency Range | 2.851 ~ 2.861GHz | 2.851 ~ 2.861GHz | 2.75 ~ 2.95 GHz | 1.25 ~ 1.45 GHz |
| VSWR | 1.10 max | 1.10 max | -- | -- |
| VSWR-WOW | -- | -- | -- | -- |
| Insertion Loss | 0.2dB max | 0.2dB max | 0.25dB max | 0.25dB max |
| Insertion Loss-WOW | -- | -- | -- | -- |
| Peak Power | 8MW | 8MW | 250-400K watts | 250-400K watts |
| Average Power | 15KW | 15KW | 75-500 watts | 75-500 watts |
| Pressure | 43.5 Psi min | 43.5 Psi min | 10 Psi min | 10 Psi min |
| Input | WR284 | WR284 | WG284 | Coaxial 1-5/8 inch |
| Material | Brass | Brass | Aluminum | Aluminum |
